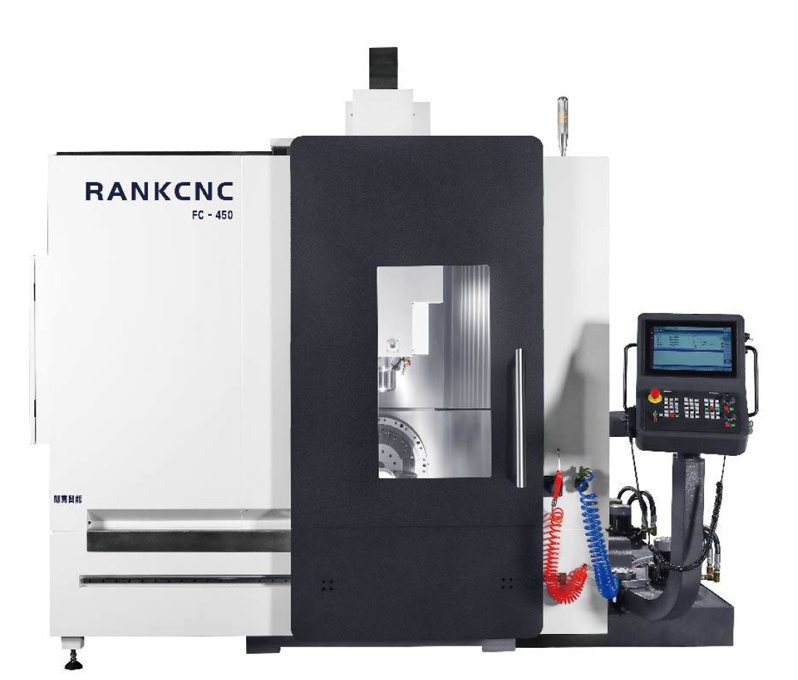

Cradle Five-Axis FC-450

ITEM

UNIT

FC-450

FC-650

Capacity

X/Y axis travel

mm

800/360

820/520

Z-axis travel

mm

400

500

Distance from table(pallet) top to spindle end

mm

150-550

150-650

Distance from column front to spindle center

mm

183.5

187

Table

Table size (L*W)

mm

Ø400

Ø650

Permissible mass of workpiece

kg

200

300

Feed rate

Rapid traverse(X/Y/Z)

m/min

36/36/36

24/24/24

Motor power

Spindle motor( cont/30min)

kW

11/15

11/15

Feed motor (X/Y/Z)

kW

4/4/4

4/4/4

Spindle

Spindle speeds

rpm

15000

15000

Tool shank

-

BBT40

BBT40

Accuracy

Positioning

mm

0.008

0.008

Repeatability

mm

0.006

0.006

A.T.C

Tool storage capacity

-

40

40

Max. tool diameter(with adjacent tools)

mm

Ø80

Ø80

Max.tool diameter(without adjacent tools)

mm

Ø150

Ø150

Max. tool length

mm

300

300

Tool change time

S

2.91

2.91

Machine size

Machine dimensions(L)

mm

3613

4610

Machine dimensions(W)

mm

3446

3945

Machine dimensions(H)

mm

2571

3070

Mass of machine

kg

9000

11000

Power supply

KVA

35

35

CNC control system

SIEMENS 840D
