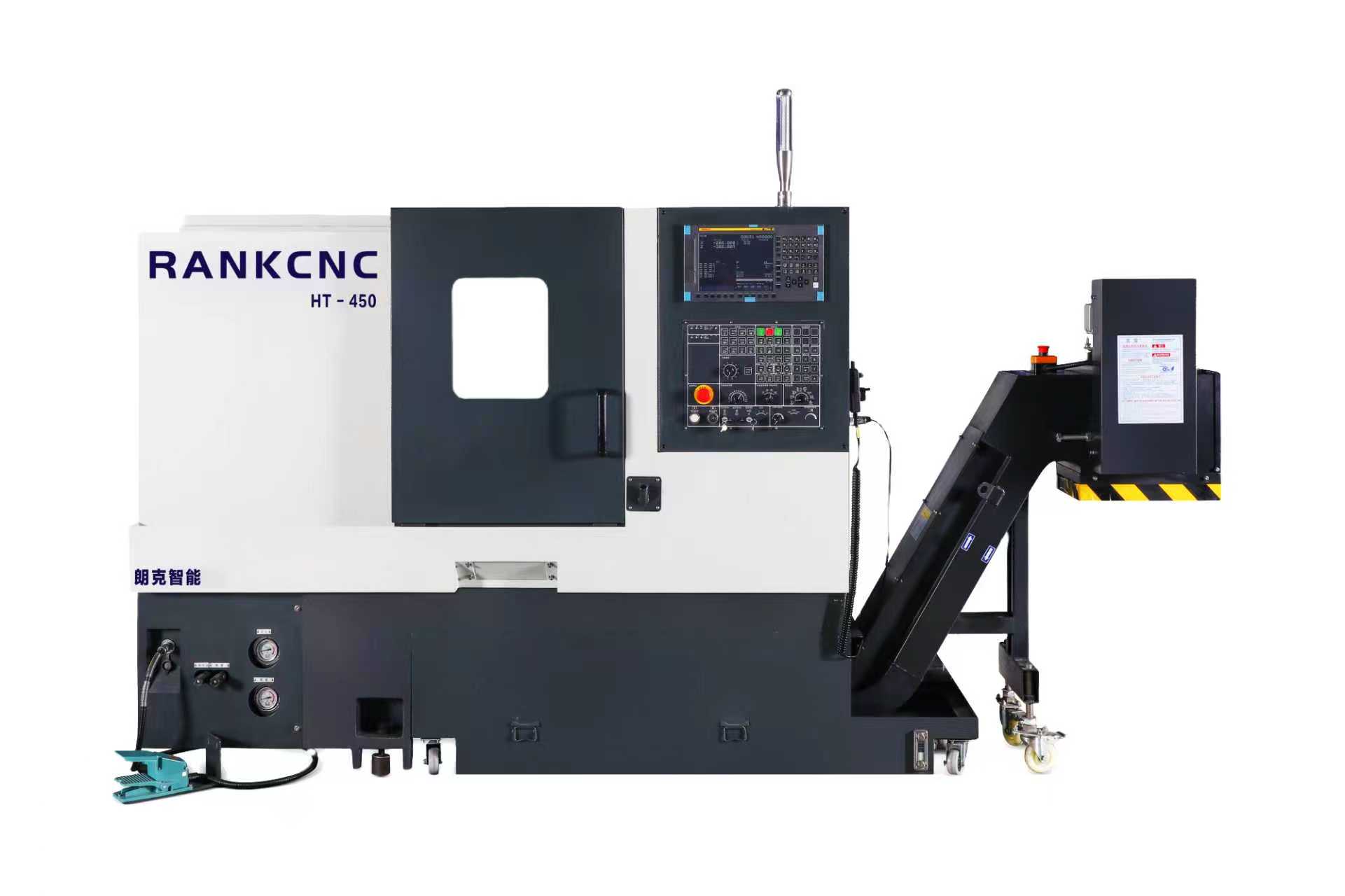

Lathe Series HT-450

ITEM

UNIT

HT450

HT450H

HT520

Travel

mm

105+20

105+20

175+25

Z-axis

mm

460

460

600

Capacity

Max.swing

mm

Ø450

Ø450

Ø520

Max. turning diameter

mm

Ø210

Ø210

Ø350

Max.turning length

mm

420

420

540

Bar capacity

mm

Ø51

Ø51

Ø65

Spindle

Spindle speed range

rpm

4500

4500

3500

Chuck size

in

6

6

8

Type of spindle nose

-

A2-5

A2-5

A2-6

Motor power

Spindle motor power( cont/30min )

kW

11/15

11/15

15/18.5

Feed motors power(X/Z)

kW

1.8/1.8

1.8/1.8

3/3

Feed rate

Rapid traverse(X/Z)

m/min

30/30

30/30

20/24

Feed per revolution

mm/rev

0.01-500

0.01-500

0.01-500

Turret

Number of tool positions

-

12

12

12

Shank height for square tool

mm

Ø20

Ø20

Ø25

Shank diameter for boring bar

mm

Ø32

Ø32

Ø40

tailstock

Quill diameter

mm

Ø75

Ø75

Ø100

Quill inside taper

M.T

4

4

5

Machine dimensions

Machine dimensions(L)

mm

3100

2415

3715

Machine dimensions(W)

mm

1640

2230

1790

Machine dimensions(H)

mm

1655

1780

1950

Power supply

KVA

30

30

40

Mass of machine

kg

3800

3800

4600

CNC control system

-

FANUC 0I-TF Plus
