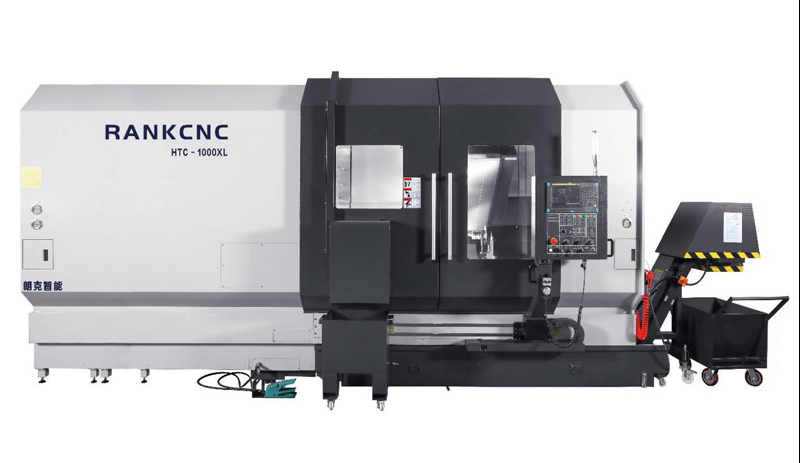

Hard Rail Lathe HTC-1000XL

ITEM

UNIT

HTC-1000XL

HTC-1000XXL

Travel

X-axis

mm

400+20

400+20

Z-axis

mm

5000

6000

Capacity

Max.swing

mm

Ø1020

Ø1020

Max. turning diameter

mm

Ø800

Ø800

Max. turning length

mm

5000

6000

Bar capacity

mm

Ø117

Ø117

Spindle

Spindle speed range

rpm

1500

1500

Chuck size

in

18

18

Type of spindle nose

-

A2-11

A2-11

Motor power

Spindle motor power( cont/30min)

kW

30/37

30/37

Feed motors power(X/Z)

kW

4/7

4/7

Feed rate

Rapid traverse(X/Z)

m/min

10/12

10/12

Feed per revolution

mm/rev

0.01-500

0.01-500

Turret

Number of tool positions

-

12

12

Shank height for square tool

mm

Ø32

Ø32

Shank diameter for boring bar

mm

Ø60

Ø60

tailstock

Quill diameter

mm

165

165

Quill inside taper

M.T

6

6

Machine dimensions

Machine dimensions(L)

mm

10690

11680

Machine dimensions(W)

mm

3045

2460

Machine dimensions(H)

mm

2672

2645

Power supply

KVA

70

70

Mass of machine

kg

27000

32000

CNC control system

-

FANUC 0I-TF Plus
