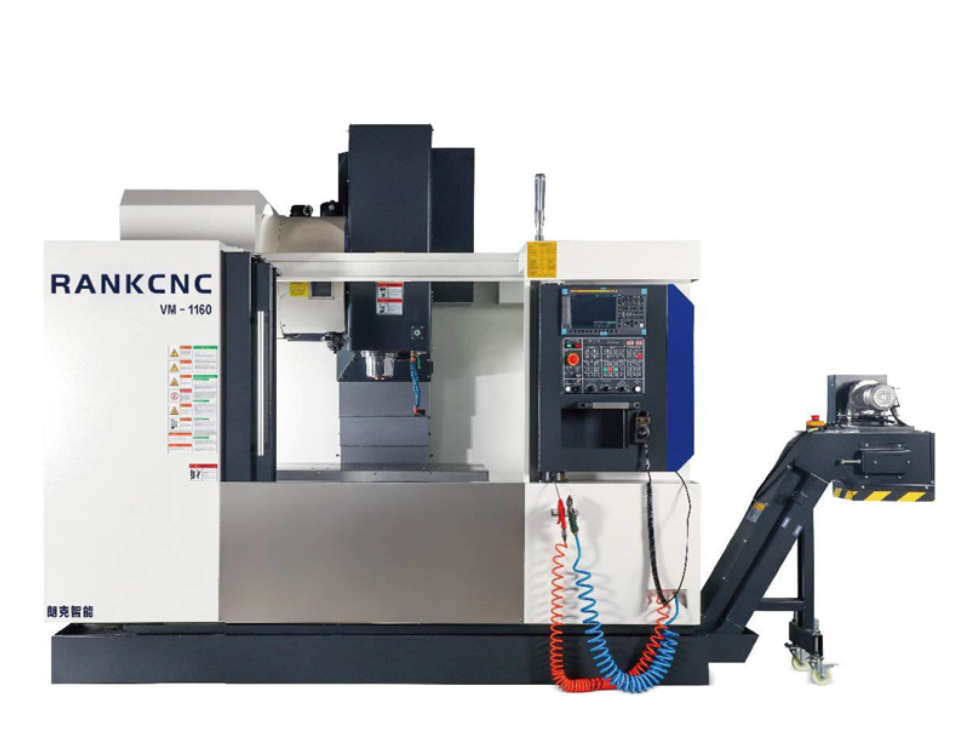

VM Eurostar Series VM-1160

ITEM

UNIT

VM-650

VM-850

V-855

VM-1055

VM-1160

Capacity

X/Y axis travel

mm

600/500

800/500

800/550

1000/550

1100/600

Z-axis travel

mm

500

500

550

550

600

Distance from table(pallet) top to spindle end

mm

120-620

120-620

120-670

120-670

120-720

Distance from column front to spindle center

mm

550

550

590

615

650

Table

Table size (L*W)

mm

800*500

1000*500

1000*550

1000*550

1200*600

Permissible mass of workpiece

kg

400

500

600

600

900

Feed rate

Rapid traverse (X/Y/Z)

m/min

48/48/36

48/48/36

48/48/36

36/36/36

36/36/36

Motor power

Spindle motor( cont/30min )

kW

7.5/11

7.5/11

11/15

11/15

11/15

Feed motor (X/Y/Z)

kW

3/3/4

3/3/4

4/4/4

4/4/4

4/4/4

Spindle

Spindle speeds

rpm

10000

10000

10000

10000

10000

Tool shank

-

BT-40

BT-40

BT-40

BT-40

BT-40

Accuracy

Positioning

mm

0.008

0.008

0.008

0.008

0.008

Repeatability

mm

0.006

0.006

0.006

0.006

0.006

A.T.C

Tool storage capacity

-

24

24

24

24

24

Max.tool diameter(with adjacent tools)

mm

Φ80

Φ80

Φ80

Φ80

Φ80

Max.tool diameter(without adjacent tools)

mm

Φ150

Φ150

Φ150

Φ150

Φ150

Max. tool length

mm

300

300

300

300

300

Tool change time

S

1.75

1.75

1.75

1.75

1.75

Machine size

Machine dimensions(L)

mm

3250

3500

3540

3740

4100

Machine dimensions(W)

mm

2845

2910

2960

2960

3470

Machine dimensions(H)

mm

2835

2870

2920

2920

3350

Mass of machine

kg

5100

5300

5800

6200

6800

Power supply

KVA

25

25

30

30

30

CNC control system

FANUC 0I-MF Plus
